For engineers, architects, contractors & estates teams, restoration builders, property developers - we offer the complete timber rot solution/


Structural timber repair for refurbishment & conversion projects

Repair damaged beam ends in the wall and anywhere else along a span, retain sound timber wherever access can be made.

Only open up around the damage - this often means that the roof can stay in place, floors and ceilings need not be disturbed.

Keyhole surgery for buildings.

.We manufacture made-to-measure Timber-Resin Splice (TRS) kits and supply structural epoxy resins, with practical help from enquiry to installation.

Planning repairs to a church roof, school, block of flats or commercial building? Talk to us about the timber, the access and the project requirements.

Rot dug out to leave wall both sides. Resin will be poured in to bond the repair together.Pouring Structural Epoxy Resin

Principle of a modified Flitch - steel plus Epoxy Resin

Strength Upgrade plus new timber end in the wall - the principle of a steel in epoxy resin Flitch

Discuss your repair project | Explore repair methods



Click to go to the Top of the page


Design • Costing • Calculations • Manufacture • Training • Repair methods

Free expert advice. Speak to real people. No hard sell.

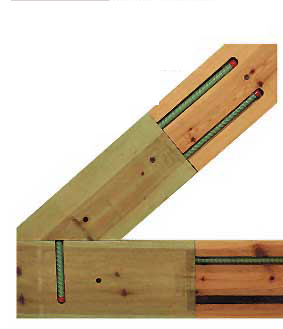

Timber-Resin Splice repair illustration showing a replacement timber section connected to an existing beam

A Timber-Resin Splice connects a new, Kiln Dried replacement timber section to the retained member.

The new part can be made from Pine, Douglas Fir, Southern Yellow Pine, Oak,and many other Species of wood.

The Beam Fitting Type is selected to suit access to the repair zone of decay.


Made-to-measure Timber-Resin Splice kits

A decayed bearing end or midsection need not mean replacing an entire beam. A TRS repair uses a new timber section, reinforcing bars and structural epoxy resin o form the connection to sound existing timber.

Our kits are manufactured to your repair dimensions. Applications include joists, bressumers, tie beams, rafters, purlins, ridge beams and glulam beams. Where appropriate, a small, localised repair can reduce opening-up and support costs, and help retain surrounding floors, ceilings and finishes.

Access, preparation, installation and cost determine the practical choice of TRS Type.

Tie Beam rot damage  in a Church - fit a new TRS end, leave the roof on.Timber Resin Splice unit ready to install

Rot in large Tie Beam of an A Frame- foot of rafter also affected

See how TRS kits are manufactured  |  Complete TRS Units ready to fit

Timber supply: Oak, Elm, Pine, Iroko, Douglas Fir, Southern Yellow Pine and European Whitewood. All timber supplied is kiln dried; softwoods are strength graded C24. Discuss species, appearance and availability with us. We only used Kiln Dried, Strength Graded timber to reduce the risks of splitting and warping in service - characteristics of Green timber which we wish to avoid.

Click to go to the Top of the page


Design, manufacture and practical support

Bring us the repair problem, including the unusual ones.

Our service includes design, costing, calculations, manufacture, training and repair methods, helping your project team move from an initial idea to a repair that can be specified and installed.

Cupola repairs, Pannier MarketPlastic shutters in place ready for Epoxy Injection

Cupola on the Pannier Market - leg rot cut out - plastic shutter fitted


Curved timbers, Glulams and cosmetic beams

We also help with unusual structures and bespoke requirements, including curved timber members, glulam beams and cosmetic beams. Tell us whether the requirement is structural, decorative, or both, and send drawings or photographs showing the shape, dimensions and finish required.

Glulam new repair section manufactured to fit at both endsLarge Glulam Beams - wet rot occurred in the Shoes at the base

New Glulam beam repair part with connection slots

Two part curved Oak laminated Lintol

Curved Oak Lintol repair in two sections - centre joint,

for ease of installation in a tight space.



Discuss an unusual structure or bespoke beam

Click to go to the Top of the page


Timber repairs for substantial buildings

From an individual structural repair to a schedule of affected beams, we help project teams investigate a practical repair approach and obtain kit costings.

Churches & historic buildings

Church roof timber repairs, tie beam ends and roof trusses. Support for inspecting architects, conservation engineers, church trustees and specialist contractors.

Macintosh Mill - roof frames with rot

Typical Warehouse Frame with rot in the wall sockets

due to faulty valley gutters

Explore tie beam repairs

Schools & education estates

Structural timber repairs for school refurbishment projects, including roof members and floor joists. Advice for trust estates teams, surveyors and their contractors.

Explore rafter repairs

Government & public buildings

Repair options for timber-bearing floors and roofs in public buildings. Help for estates departments, consulting engineers and refurbishment contractors preparing a scheme.

Design and calculation options

Warehouses & offices

Timber beam end repairs and structural timber floor repairs in existing commercial buildings, including older premises being refurbished for continued use.

Timber Resin Splice repair part - slots built in

Pre-slotted repair TRS Type E or G

Explore carrier beam repairs

Install a new bearing end from underneath

Carrier Beam repair, TRS installed from underneath

Flats & housing portfolios

Floor joist end repairs for blocks of flats and residential refurbishment. Discuss access from above or below with your surveyor, engineer and contractor.

Explore floor joist repairs



Repair joist above a ceiling, end rot, 45 degree face angle

Above an in-situ lath and plaster ceiling - Timber Resin Splice with a 45 degree face

Conversions to accommodation

Timber repair and strengthening options for mills, warehouses, offices and shops being converted to housing, subject to the engineer's assessment of the proposed use.

Explore bressumer beam repairs

Shop front bressumer rot - ideal for a Timber Resin repair

Bressumer above a shop - rot repair without removal

For listed and historic buildings, repair proposals should follow an assessment of the existing fabric and the necessary conservation approvals. Resin-based repair is one option to assess for suitability.

Click to go to the Top of the page


Support for the people specifying and carrying out the work

Engineers & architects

Discuss repair geometry, timber dimensions, reinforcing connections and access constraints. Use our technical guides to explore a repair before completing the project specification.

Review structural calculation routes

Contractors & surveyors

Send photographs, dimensions and a sketch. We can help identify the information needed for a quotation and discuss practical preparation and installation choices.

Request a project costing

Owners & estates managers

Explore repair options with us and share them with your appointed advisers. For multiple repairs, send a numbered schedule so each location can be discussed clearly.

Talk through your requirements

Free technical help and independent engineering

Our preliminary repair design advice and internal check calculations are free. PRS is not a structural engineering practice, and these checks are not professionally indemnified structural calculations.

We can work with your appointed structural engineer or arrange a separate, chargeable service through an independent qualified structural engineer for indemnified calculations. Ask us about the scope, information required and costs.

Click to go to the Top of the page


Structural timber repair guides

Start with the member or the problem. The guides explain survey information, access considerations and repair arrangements.

Beam ends, floors & roof members

Repair planning & strengthening

For Purlin, ridge beam and glulam beam repairs, contact us with the member dimensions and photographs so we can discuss your particular arrangement.

Click to go to the Top of the page


From initial enquiry to a costed repair proposal

  1. Send the building and timber information. Include photographs, a dimensioned sketch, the affected locations and any survey or engineering information available.
  2. Discuss access and repair options. Tell us which faces can be reached and what floors, ceilings or finishes need to be retained.
  3. Confirm the engineering requirements. Agree the route for structural design and calculations with the project team.
  4. Agree the kit details and programme. Confirm dimensions, quantities, materials and current manufacturing and delivery times before ordering.

The cause of decay needs to be addressed alongside the timber repair. Tell us about any unresolved moisture source or continuing deterioration.

One beam or a whole schedule of repairs

Click to go to the Top of the page


Tell us about your project

Call 01626 872886 or E-mail help@propertyrepairsystems.co.uk. We will help you work out what information is needed. Free expert advice, without sales pressure.

For several repairs, number each timber and include its width, depth, span, bearing details, estimated damaged length and available access. Include the site location and intended programme.

Email your project details

Download the TRS enquiry checklist (PDF) — or telephone and we can help complete it with you.
